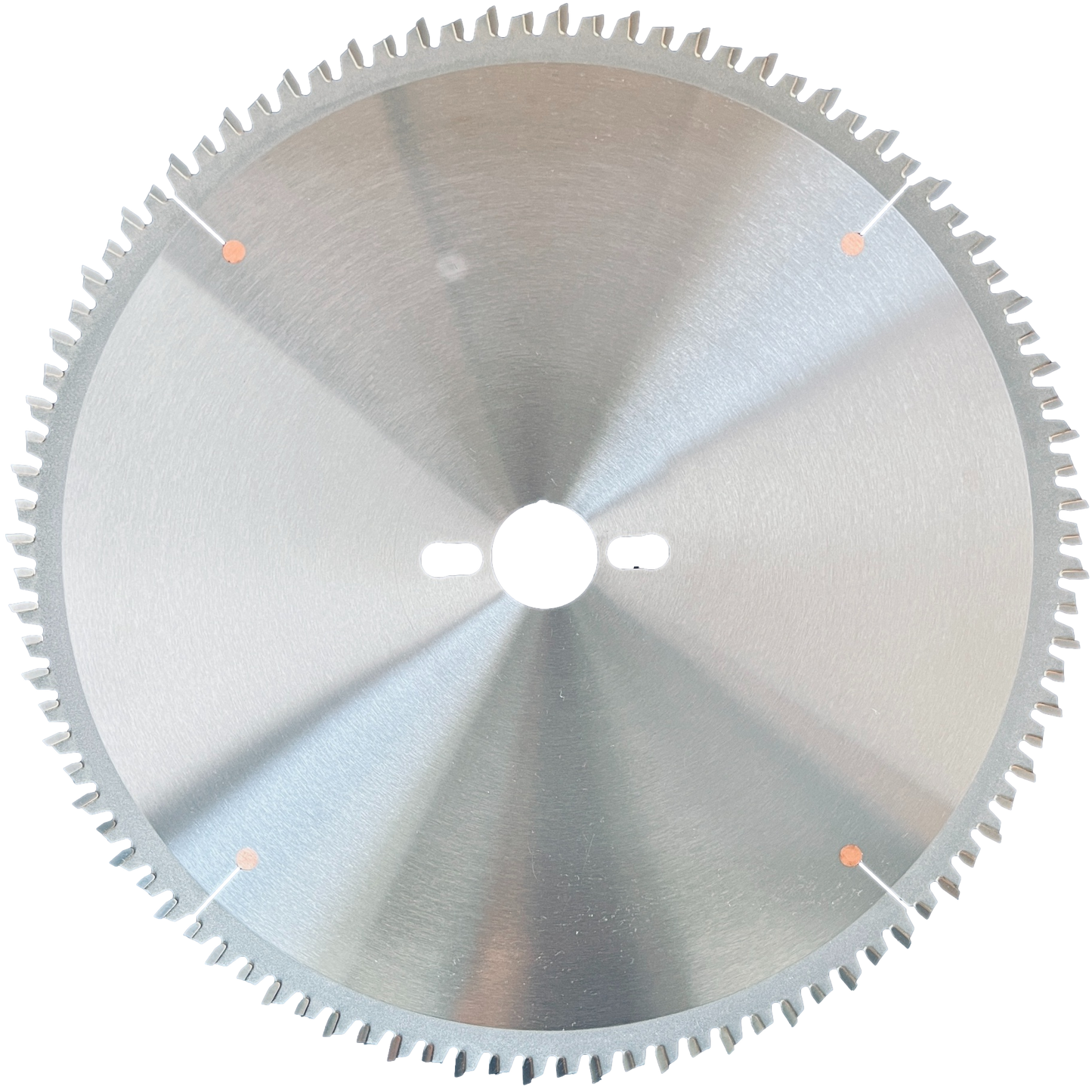

350mm D x 96 Teeth x ATB x 30mm Bore Melamine / Plywood Saw Blade (LM3503096)

350mm D x 96 Teeth x ATB x 30mm Bore Melamine / Plywood Saw Blade (LM3503096)

SKU: ITEM # LM3503096

Regular price $243.68
Regular price Sale price $243.68
Sale Sold out
Quantity
Need it modified to fit your machine? Request a quote →

Estimated fees $0.00 — final pricing & lead time (1–5 business days) confirmed in your quote.

Specifications
Blade Diameter350mm
Number of Teeth96 Teeth
Arbor Hole30mm
Pin Pattern3+3
Kerf Width3.6mm
Plate Width2.8mm
Tooth GeometryHATB
Hook Angle-5
Type of CutSizing
ApplicationsMelamine, Laminate, MDF / Particleboard, Plywood
Machine TypeSliding Table Saw, Panel Saw
Country of OriginTaiwan
View full details

The 350mm 96-tooth Hi-ATB melamine blade (LM3503096) is purpose-built for chip-free cutting of double-sided melamine, laminate, Korton, and veneered panels. Its 35° high alternate-top-bevel teeth shear the brittle surface clean on both faces, and the 3.6mm kerf on a 2.8 plate runs flat and true.

This blade runs a 30mm bore with the universal 2/7/42 + 2/9/46 + 2/10/60 pinhole pattern and a -5° hook for controlled feed on sliding table and panel saws. Need a different bore or pin layout? Any blade can be modified to fit your machine. Carbide-tipped teeth resharpen many times to keep your cost-per-cut low.
