Twenty different cut widths from 1/4" to 29/32" — including the undersized plywood cuts (15/32" and 23/32") that real cabinet shops actually use. The Super Stack 8" dado set from LORNA Industrial delivers dead-flat dado bottoms with minimal tear-out in solid wood, hardwood, plywood, and MDF on any table saw with 1-1/2 HP or more.
What's in the 8-piece Super Stack set

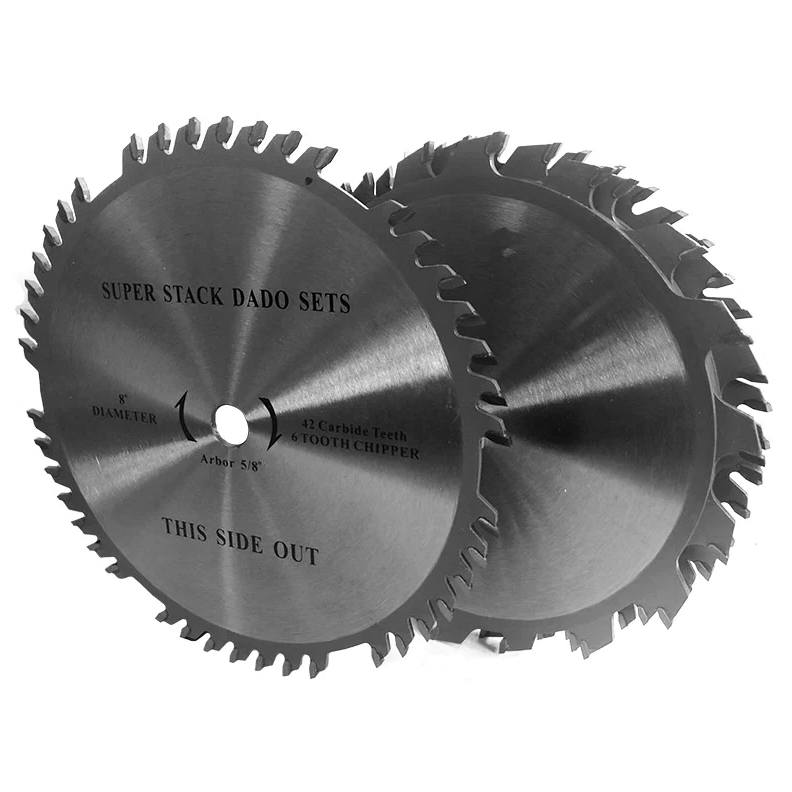

- 2 × 8" outside blades — 42 teeth each (1 right-hand, 1 left-hand), 10° positive hook angle for clean shoulders and smooth feed
-

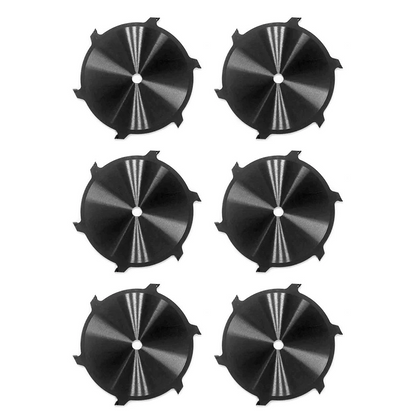

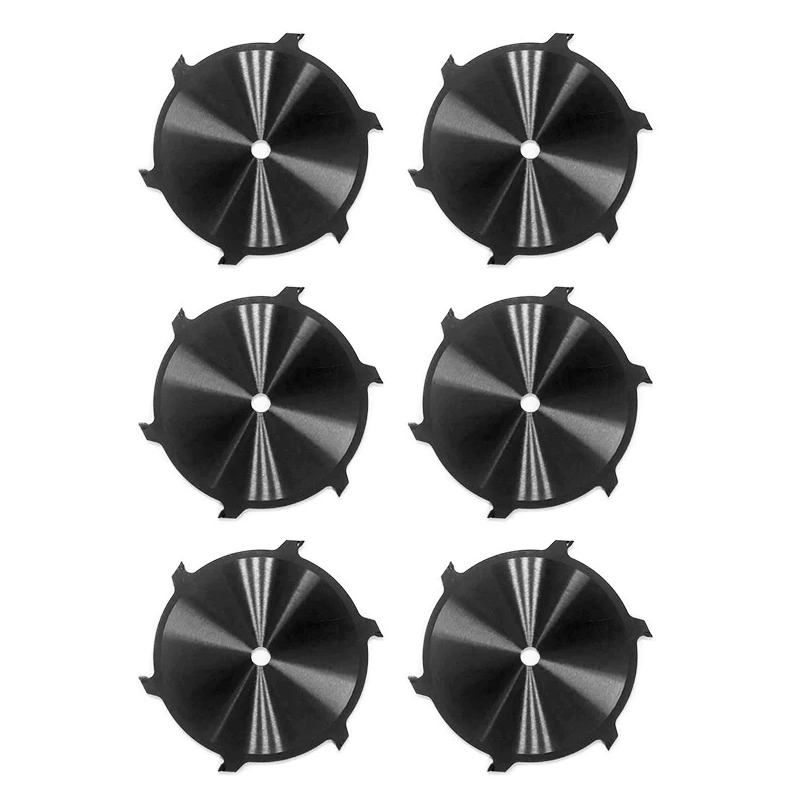

6 × full-body 6-tooth chippers:
- 4 × 1/8" kerf
- 1 × 3/32" kerf
- 1 × 1/16" kerf
- Brass shim set for dialing in width to the thousandth
- Stack chart and instructions
- Cardboard storage box for safe handling and storage
Why the Super Stack
- 20 cut widths — covers every common dado, groove, rabbet, and tenon dimension you'll cut
- Fits real plywood — dedicated stack combos for undersized 1/2" (15/32") and 3/4" (23/32") sheet goods, no shim wrestling required
- True flat bottoms — opposing-hand outside blades score the wood fibers cleanly so dado floors come out flat with no "bat-wings"
- Minimal tear-out — clean cuts in solid wood, plywood, MDF, and melamine
- Industrial carbide — re-sharpenable for long service life
Cut width chart
This Super Stack produces 20 different dado widths. Use the chart below to assemble the stack:
| Dado Width | Outside Saws | 1/8" Chippers | 3/32" Chippers | 1/16" Chippers |
|---|---|---|---|---|
| 1/4" | 2 | — | — | — |
| 5/16" | 2 | 1 | — | — |
| 11/32" | 2 | — | 1 | — |
| 3/8" | 2 | 1 | — | — |
| 13/32" | 2 | 1 | 1 | — |
| 7/16" | 2 | 1 | — | 1 |
| 15/32" (undersized 1/2" plywood) | 2 | 1 | 1 | — |
| 1/2" | 2 | 2 | — | — |
| 17/32" | 2 | 1 | 1 | 1 |
| 9/16" | 2 | 2 | 1 | — |
| 19/32" | 2 | 2 | — | 1 |
| 5/8" | 2 | 3 | — | — |
| 21/32" | 2 | 2 | 1 | 1 |
| 11/16" | 2 | 3 | — | — |
| 23/32" (undersized 3/4" plywood) | 2 | 3 | 1 | — |
| 3/4" | 2 | 4 | — | — |
| 25/32" | 2 | 3 | 1 | 1 |
| 13/16" | 2 | 4 | — | — |
| 27/32" | 2 | 4 | 1 | — |
| 29/32" | 2 | 4 | 1 | 1 |
Use brass shims to fine-tune between increments.
Best for
Cabinet construction, drawer slide channels, shelf dadoes for plywood and melamine, rabbets and tenons, half-laps, box joints, and any application where you need a flat-bottom groove in hardwood, softwood, plywood, MDF, or melamine.
Custom bore, pinhole, or keyway? We modify LORNA blades too.
LORNA Industrial blades can be modified to your exact spindle configuration — custom bore sizes, pinhole drive patterns, keyways, or splitting for specialized mounting. Modifications are performed in a full machine shop using wire EDM, precision lathes, and mills, then shipped to you.
- Typical lead time: 5 business days
- Rush option: $75 per dado set
- Tight tolerances and minimal runout, even on heavily modified blades
Learn more → or call (855) 628-7297 for a quote.
Compatibility
- Minimum 1-1/2 HP table saw with dado capability (long arbor, removable splitter/guard)
- 5/8" arbor
- ⚠ NOT compatible with SawStop table saws. Do not install on any SawStop machine.
Setup & safety
- Outside saws always mount on the outside of the stack, chippers between them — high point of each outside blade's carbide tips faces outward
- Never run chippers without both outside saws installed
- Verify your material thickness before assembling the stack
- Clean dust, chips, and debris from all blades and chippers before assembly
- Confirm rotation direction on every blade and chipper before tightening
- For deep dadoes or low-power saws, make multiple passes at progressively deeper settings
- Feed at a steady rate with material fully supported and pressed firmly against the table
- Always follow OSHA guidelines, wear eye protection, and keep hands clear of rotating tools
Specifications
- Brand: LORNA Industrial
- Blade diameter: 8"
- Outside blade teeth: 42 (each)
- Chipper count: 6 (mixed kerf)
- Hook angle: 10° positive
- Cut width range: 1/4" minimum to 29/32" maximum (20 increments)
- Arbor: 5/8"
- Min. saw power: 1-1/2 HP
- Includes: Brass shim set, stack chart, instructions, cardboard storage box
Frequently asked questions
New to dado sets, or not sure if this is the right setup for your shop?
Our complete dado set buying guide walks through 6" vs 8" sizing, tooth count, stack charts, undersized plywood compatibility, HP requirements, and the SawStop question.
Will this work with my SawStop?
No. This dado set is not recommended for SawStop table saws. Do not install on any SawStop machine.
What size table saw do I need?
1-1/2 HP minimum with a 5/8" arbor and dado capability (long arbor with the splitter/guard removable). Most contractor and cabinet saws qualify.
Does it cut real-world (undersized) plywood?
Yes — this is one of the standout features. Dedicated stack combinations produce 15/32" (for 1/2" plywood) and 23/32" (for 3/4" plywood) without shim-stack guesswork.
What's the widest cut I can make in one pass?
29/32" using both outside blades, all four 1/8" chippers, the 3/32" chipper, and the 1/16" chipper.
Is there a storage case?
Yes — the set ships in a sturdy cardboard storage box.
Can the blades be re-sharpened?
Yes. Standard carbide-tip sharpening — most local sharpening services can handle it.
Can the bore be modified for a different arbor size?
Yes — we work with a full machine shop that can modify the bore to your exact spec. Typical lead time is 5 business days, with a $30/blade rush option available. Call (855) 628-7297 for a quote.
